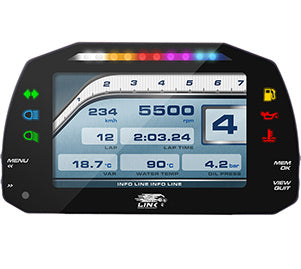

LINK MXS Strada 5" Dash - Street Edition

Clear, Full-Colour ECU Data for the Street

Get a clear, full-colour view of everything your Link ECU is telling you. The Link MXS Strada dash brings motorsport-grade display technology to the street, built specifically for road use and pre-configured to plug straight into your Link G4+ or G4X system.

Why Drivers Across Canada and the US Choose the MXS Strada Street Edition

Built for the Road, Not Just the Track

This Street Edition version is legal for road use and comes equipped with six dedicated street icons: indicator, headlight, high beam, check engine, oil pressure warning, and temperature warning. Get the everyday information you need right on the dash.

Plug-and-Play with Your Link ECU

Pre-configured to work with all Link G4+ and G4X Wire-In and Plug-in ECUs, the Link MXS Strada dash connects directly via the included pin kit and wiring. Plug-in ECU owners will need CANPCB and CANF connectors, sold separately.

Dial In Your Shift Lights, Your Way

Ten multi-coloured RGB shift lights let you set a custom RPM threshold for each gear, providing a clear, glanceable shift cue whether you are cruising or pushing hard.

Sharp Visibility, Day or Night

The high-contrast 5" TFT screen delivers crisp, real-time data including RPM, speed, water temperature, oil pressure, and more, straight from your ECU. A built-in ambient light sensor automatically adjusts screen brightness for readability in changing lighting conditions.

Simple to Run, Simple to Customise

Side-mounted buttons let you flick through a library of preset display layouts to suit the information that matters most to you. Personalise the dash using Link ECU PC Link and Aim Technologies Race Studio 3 software.

Tough, Compact, and Ready to Install

• Screen: 5" TFT display
• Dimensions: 169.4 x 97 x 23 mm
• Weight: 480 g
• Power consumption: 400 mA
• Waterproof rating: IP65

What's in the Box

• Link MXS 1.2 Strada
• USB cable
• 14-pin standard wiring
• 23-pin connector and contacts
• GPS module available separately

This dash is also available in a 7" version. For a setup built for motorsport use rather than road driving, consider the Race Edition.

Wire it in, dial it in, and get a dash built to work with your Link ECU from the moment you turn the key.
