Kelford Cams | EJ257B WRX STi Dual AVCS (2008-Current)

$1,158.00 USD

Duration

220-A Camshaft Set 256&252/260 Degrees advertised duration. 9.55mm&9.55mm/9.50mm lift. 220-B Camshaft Set 264&260/260 Degrees advertised duration. 10.70mm&10.20mm/10.20mm lift. 220-C Camshaft Set 272&268/268 Degrees advertised duration. 11.30mm&10.50mm/10.50mm lift. 220-D Camshaft Set 282&278/278 Degrees advertised duration. 11.50mm&11.00mm/11.00mm lift. 220-E Camshaft Set 292&288/294 Degrees advertised duration. 11.00mm&11.00mm/11.00mm lift. 220-X Custom Camshaft Set Custom cams for Subaru EJ257B WRX STi engines with DUAL-AVCS (2008 - Current).

Components

KVS109-STi High Performance Valve Spring Set SUBARU EJ20/25 High performance 'PACALOY' valve spring set. 'Drop in fit' on the OEM retainer. KVS1847-BT High Performance Beehive Valve Spring & Titanium Retainer Kit SUBARU EJ20/25 2000- Current. Ovate wire None

Pickup available at #12, 4845 79th st.

Usually ready in 2-4 days

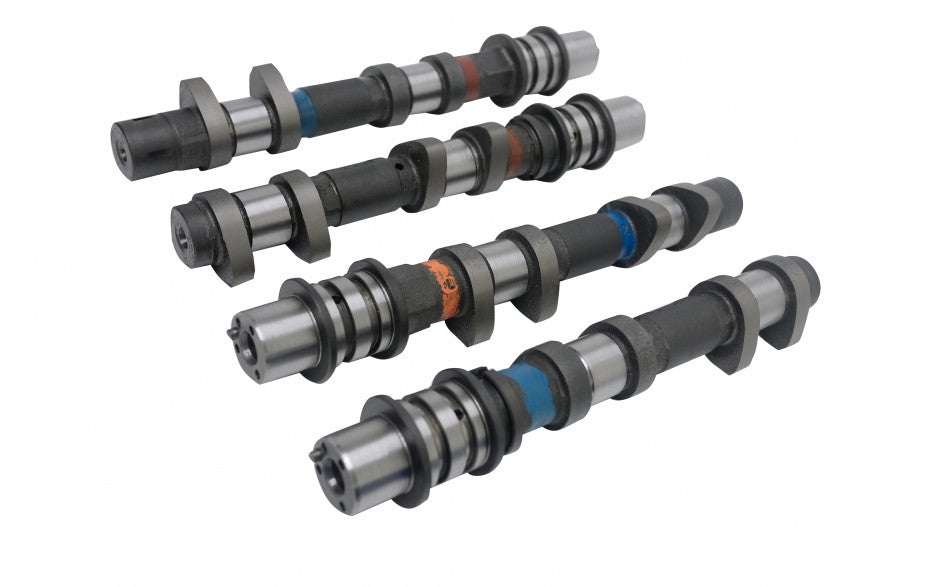

Kelford Cams for EJ257B WRX STi Dual AVCS

Genuine Kelford performance camshafts, purpose-built for the Subaru EJ257B Dual AVCS engine found in 2008-current WRX STi models. For STi owners across North America searching for Kelford cams EJ257 WRX STi, this application-specific profile range is built to work with your factory Dual AVCS system.

Why This Cam Range Stands Out

Proven Lobe Design, Refined for Dual AVCS

These camshafts carry forward the same lobe designs that have made Kelford's earlier EJ-series cams a trusted choice, adapted specifically to take advantage of the Dual AVCS system on the 2008-current EJ257B. Dual AVCS gives tuners a wider operating range to work with, and these profiles are designed to make the most of it.

ICE Technology

Every cam in this range features Kelford's ICE (Improved Combustion Efficiency) split-duration design. This approach delivers a combustion efficiency gain and is exclusive to Kelford.

Catalogue Range or Custom Grind

Choose from Kelford's established catalogue of profiles for the EJ257B Dual AVCS, or work with the team to have a custom cam manufactured for your specific build requirements. Whether you are setting up a street car or building toward a more specialized application, there is a path to the right profile.

Correct Valve Spring Selection Matters

Valve spring choice depends on the installed height in your particular cylinder heads; it is not one-size-fits-all. Before ordering, contact us to confirm the correct spring selection for your setup and help avoid valvetrain issues down the road.

Features at a Glance

Application-specific fitment for Subaru EJ257B WRX STi Dual AVCS, 2008-current
Kelford's proven EJ lobe design lineage, optimized for the Dual AVCS operating range
Exclusive ICE split-duration technology for improved combustion efficiency
Full catalogue range available, plus custom cam design and manufacture to your specifications
Direct support for valve spring selection based on your installed height

Built for WRX STi owners across North America who want their Dual AVCS system working with genuine, application-correct camshafts. Reach out to our team to confirm your spring setup or discuss a custom profile before ordering.
