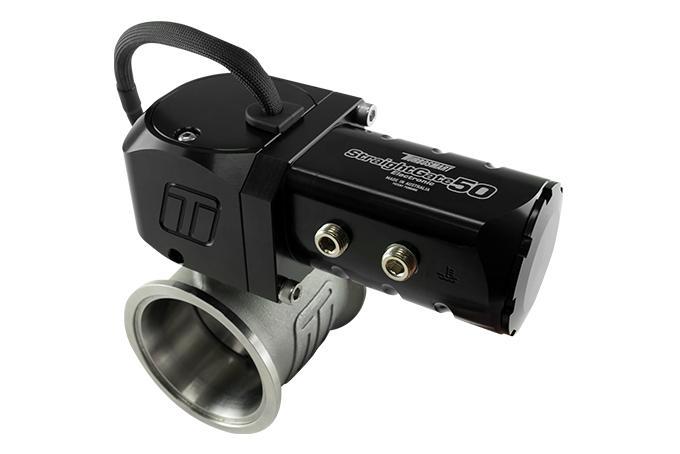

Thermally stable and tested to 1250°C / 2280°F the eSG50 is capable in the most demanding environments while providing control never before seen before via liquid cooling and the inclusion of a ceramic thermal insulating spacer between the actuator and valve body. The onboard temperature & position sensor outputs allow for advanced control strategies.
This StraightGate50 50mm Valve provides the control of a smaller 40mm valve, with flow exceeding that of a traditional 60mm valve. Teamed with Electronic Actuation, all the limitations of traditional boost control are a compromise of the past. With appropriate manifold priority, these valves can provide 100% bypass for zero boost up to maximum boost and do so faster than any valve before it – Full valve actuation can be performed in 63ms and provide an unparalleled tuning window.
50mm (1.97in) Butterfly Valve
Full Electronic Control
Liquid Actuator Cooling Provision
Strap Type V-Band Clamps
User Adjustable Actuator Position
Endless Boost Control Strategies
Onboard (0-5v) Actuator Temperature Sensor
Onboard (0-5v) Valve Position Sensor
7 Wire Unterminated Flying Lead loom
