Extreme Turbo Systems  |  SKU: 100-20-ICP-096

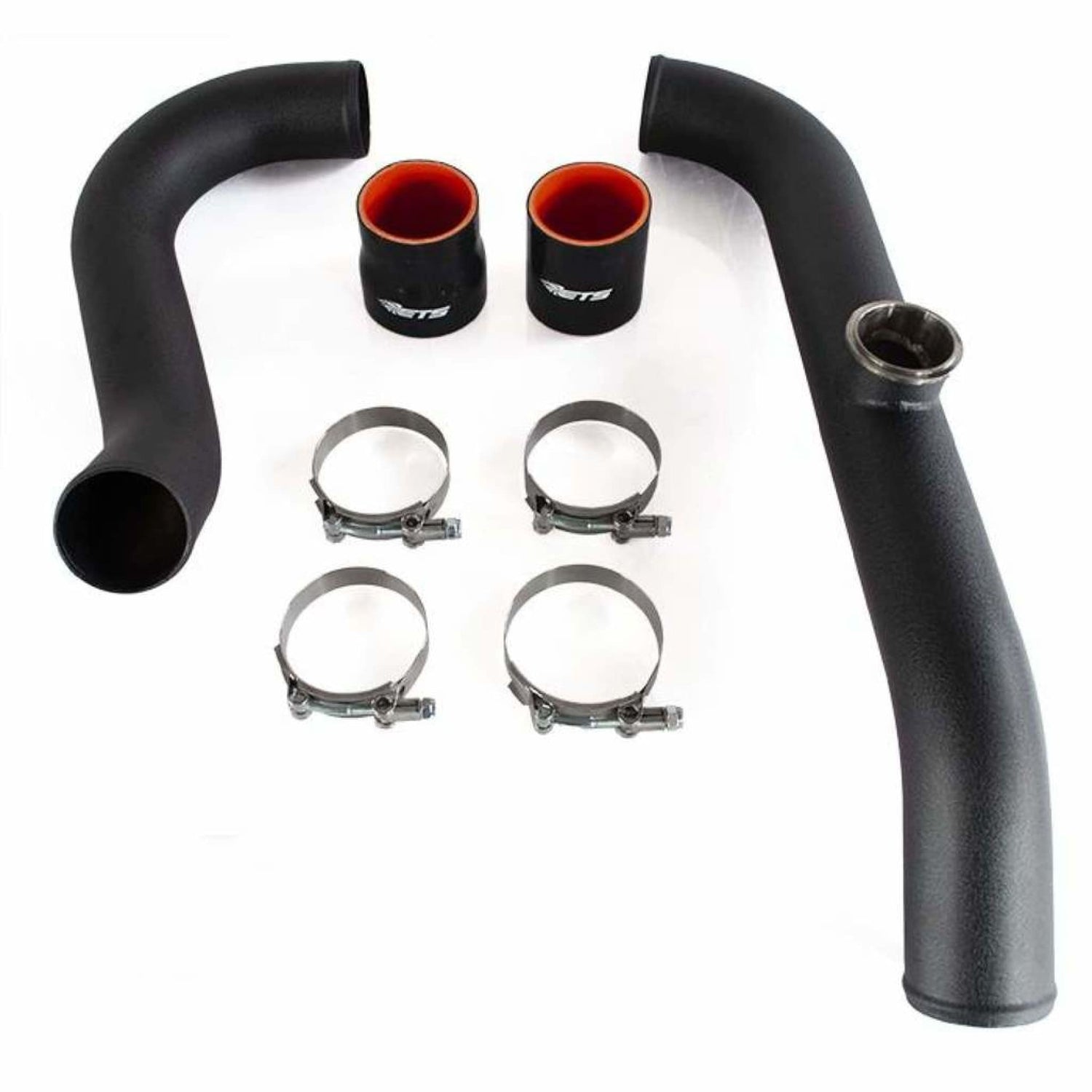

ETS 03-06 Mitsubishi Evo 8/9 2.5" Short Route Upper Intercooler Piping Kit

$395.00
Throttle Body Size
Speed Density Bung
BOV Flange
*NOTE: EDM/JDM cars equipped with the factory SAS system requires removal.



Features:

  • Designed for Stock Intake Manifold
  • Complete Upper Intercooler Piping Kit (Lower Pipe Sold Separately)
  • Stainless Steel Mandrel Bent Piping
  • Short Route: Two feet shorter than stock (requires mini battery kit or trunk mounted battery)
  • Lower piping flows over 20% more
  • Upper Piping flows over 12% more

The ETS Evo Piping kit is designed to eliminate many of the unnecessary bends in the stock piping. Our complete piping kit starts off by immediately expanding into 2.5" right off of the turbo elbow. This replaces the tiny 1 3/4" factory pipe and instantly adds an extra 15hp and greatly improves spool. From here it follows the core support and wraps around to the intercooler. Once the air passes through the intercooler, the piping takes a short direct path around the core support, over the transmission and straight up to the throttle body. This unique routing is over two feet shorter than the stock routing which results in greatly improved spool.

Note: Recirculation kit is only needed for Short route piping kit when you are wanting to recirculate your BOV.

ETS 03-06 Mitsubishi Evo 8/9 2.5" Short Route Upper Intercooler Piping Kit - AFR Autoworks
Extreme Turbo Systems

ETS 03-06 Mitsubishi Evo 8/9 2.5" Short Route Upper Intercooler Piping Kit

From $395.00
*NOTE: EDM/JDM cars equipped with the factory SAS system requires removal.



Features:

  • Designed for Stock Intake Manifold
  • Complete Upper Intercooler Piping Kit (Lower Pipe Sold Separately)
  • Stainless Steel Mandrel Bent Piping
  • Short Route: Two feet shorter than stock (requires mini battery kit or trunk mounted battery)
  • Lower piping flows over 20% more
  • Upper Piping flows over 12% more

The ETS Evo Piping kit is designed to eliminate many of the unnecessary bends in the stock piping. Our complete piping kit starts off by immediately expanding into 2.5" right off of the turbo elbow. This replaces the tiny 1 3/4" factory pipe and instantly adds an extra 15hp and greatly improves spool. From here it follows the core support and wraps around to the intercooler. Once the air passes through the intercooler, the piping takes a short direct path around the core support, over the transmission and straight up to the throttle body. This unique routing is over two feet shorter than the stock routing which results in greatly improved spool.

Note: Recirculation kit is only needed for Short route piping kit when you are wanting to recirculate your BOV.

Throttle Body Size

  • 2.75" (Stock)
  • 3.0" (Aftermarket)

Speed Density Bung

  • Includes Bung/Plug

BOV Flange

  • Stock BOV
  • TiAL BOV
  • HKS BOV
  • Stock BOV with Recirculation Coupler
  • TiAL BOV with Recirculation Coupler
  • HKS BOV with Recirculation Coupler
