AFR AUTOWORKS IS NOW OFFERING AFFIRM FOR OUR CUSTOMERS

Kelford Cams 5% Discount

Save 5% off all Kelford products we carry!

KELFORD5
Extreme Turbo Systems  |  SKU: 200-40-IC-001

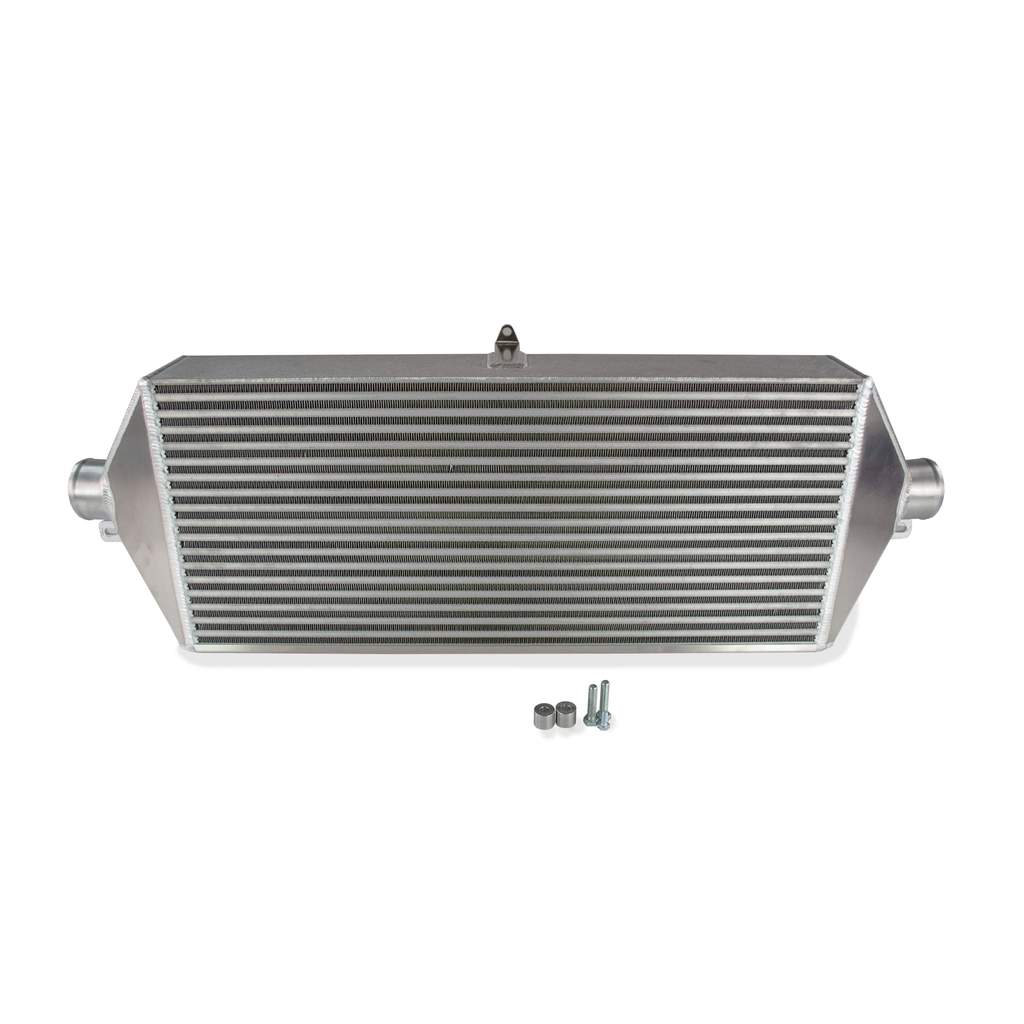

ETS 15-21 Subaru WRX Front Mount Intercooler

$759.00
Intercooler Thickness
Intercooler Anodizing
Stencil/Logo

Tired of heat soak? We don't blame you!

It's time to upgrade to an intercooler that is designed specifically for the 2015+ WRX with performance in mind.   Unlike other manufacturers we design all of our cores per application, which results in the absolute best performing intercooler on the market.

All of our cores feature an offset and staggered  internal and external fin pack.   The external fin pack is dense for maximum heat transfer, where the internal fin pack is less dense for maximum flow and performance.   The key is finding the perfect balance between the two, which is what we do per application.

It's common for customers to be drawn to cheaper alternatives.   Unfortunately those intercoolers are cheap for a reason!   Most cheap intercoolers utilize a straight through internal fin pack, which acts more like a tunnel than a splitter; This results is much higher/hotter intake air temps, which then leads to timing reduction, knock, mis-fires, detonation, etc.

The ETS 2015+ WRX Intercooler is designed  to perform!

  • We start by locating the inlets and outlets in the middle of the core, which allows for proper air distribution and flow throughout the core.
  • Each inlet and outlet is hand ported to reduce turbulence and promote maximum flow.   We've seen other manufacturers simply weld on a tube and not debur the inside, which creates excess turbulence and disrupts air flow through the core.

The proof is in the results!

2015+ WRX World Record - Kozmic Motorsports

  • Kozmic also campaigns an STI using one of our off the shelf cores that has a PB of 8.05 @ 184!

Features

    • Massive 26"  wide intercooler core - Designed for maximum heat transfer and minimal pressure drop
    • Core Size: 26" Wide, 11.37" Tall and 3.0", 3.5", 4.0" or 5.0" Thick.
    • Precision tig welded construction
    • Lightweight end tanks design
    • Hand ported inlet and outlet for optimal flow
    • ETS logo stenciled on intercooler.

Options

    • Available in 3.0", 3.5", 4.0" and 5.0" core thickness.
    • Core Anodizing Options - Blue, Red, Black, Gold, and Purple.

Quality Assurance

    • Every intercooler is pressure tested to 50 psi
    • Every product is cleaned and inspected prior to shipment.
    • Fins are protected/covered during shipment to prevent damage.
    • Inlet and outlet tubes are sealed to prevent any packing material from entering the intercooler as well as keep debris out during install.

Fitment

    • 2015+ Subaru WRX

Intercooler Piping Kits (Sold Separately)

Stainless Steel Intercooler Piping  - Wrinkle Black Powder Coat

    • Every ETS 2015+ WRX Intercooler Piping Kits is CNC mandrel bent out of 304 stainless steel for maximum performance, flow, durability and most of all, reliability.
    • ETS Spec 4-ply silicone couplers are designed for high heat/turbocharged applications.
    • High quality t-bolt clamps are provided to ensure a leak free seal.
    • Optional blow off valve flanges available  (Stock, TiAL, Turbosmart, Etc.)
    • High Quality Mounting Hardware

2015 WRX Intercooler Piping - Wrinkle Black
Titanium Intercooler Piping - Available In Brushed or Burn Finish

The ETS 2015+ Cold Side Titanium Piping Kit is the perfect upgrade for those wanting to  maximize performance and shed weight.    We have a beautiful burned finish available as pictured below as well as a brushed finish for those that want to remain  inconspicuous.

Available Titanium Finishes

    • Brushed (no color/raw finish)
    • Burned (as pictured below)


2015+ WRX Titanium Intercooler Piping

    Optional Accessories (Sold Separately)

    Engine/Pulley Cover w/ ETS Logo and Anodized Fasteners

    After replacing the factory top mount intercooler with an aftermarket front mount intercooler you're left with  a shroud that has no real purpose.   Don't worry though,   we have you covered, literally!   The ETS Pulley/Engine cover is the perfect  upgrade to finish your engine bay.

    2015+ WRX Engine Cover

    Intake w/ Optional Airbox

    Looking to add some performance to your vehicle without sacrificing reliability?   The 2015+ ETS WRX Intake is your answer! All of our intake kits are designed for maximum flow and performance.

    The truth is in the filter!   We worked closely with K&N to develop a filter that meets our expectations and performance goals.   Unlike other filters on the market, the ETS filter is constructed with deep pleats for maximum surface area, rounded internal edges to prevent turbulence, and the largest flow area of any filter on the market for the 15+ WRX.

    Couple our custom spec'd ETS Filter with one of our in house designed billet velocity stacks and you have a combination for success!

    2015+ WRX Intake



      ETS 15-21 Subaru WRX Front Mount Intercooler
      Extreme Turbo Systems

      ETS 15-21 Subaru WRX Front Mount Intercooler

      From $759.00

      Tired of heat soak? We don't blame you!

      It's time to upgrade to an intercooler that is designed specifically for the 2015+ WRX with performance in mind.   Unlike other manufacturers we design all of our cores per application, which results in the absolute best performing intercooler on the market.

      All of our cores feature an offset and staggered  internal and external fin pack.   The external fin pack is dense for maximum heat transfer, where the internal fin pack is less dense for maximum flow and performance.   The key is finding the perfect balance between the two, which is what we do per application.

      It's common for customers to be drawn to cheaper alternatives.   Unfortunately those intercoolers are cheap for a reason!   Most cheap intercoolers utilize a straight through internal fin pack, which acts more like a tunnel than a splitter; This results is much higher/hotter intake air temps, which then leads to timing reduction, knock, mis-fires, detonation, etc.

      The ETS 2015+ WRX Intercooler is designed  to perform!

      The proof is in the results!

      2015+ WRX World Record - Kozmic Motorsports

      Features

      Options

      Quality Assurance

      Fitment

      Intercooler Piping Kits (Sold Separately)

      Stainless Steel Intercooler Piping  - Wrinkle Black Powder Coat

      2015 WRX Intercooler Piping - Wrinkle Black
      Titanium Intercooler Piping - Available In Brushed or Burn Finish

      The ETS 2015+ Cold Side Titanium Piping Kit is the perfect upgrade for those wanting to  maximize performance and shed weight.    We have a beautiful burned finish available as pictured below as well as a brushed finish for those that want to remain  inconspicuous.

      Available Titanium Finishes


      2015+ WRX Titanium Intercooler Piping

      Optional Accessories (Sold Separately)

      Engine/Pulley Cover w/ ETS Logo and Anodized Fasteners

      After replacing the factory top mount intercooler with an aftermarket front mount intercooler you're left with  a shroud that has no real purpose.   Don't worry though,   we have you covered, literally!   The ETS Pulley/Engine cover is the perfect  upgrade to finish your engine bay.

      2015+ WRX Engine Cover

      Intake w/ Optional Airbox

      Looking to add some performance to your vehicle without sacrificing reliability?   The 2015+ ETS WRX Intake is your answer! All of our intake kits are designed for maximum flow and performance.

      The truth is in the filter!   We worked closely with K&N to develop a filter that meets our expectations and performance goals.   Unlike other filters on the market, the ETS filter is constructed with deep pleats for maximum surface area, rounded internal edges to prevent turbulence, and the largest flow area of any filter on the market for the 15+ WRX.

      Couple our custom spec'd ETS Filter with one of our in house designed billet velocity stacks and you have a combination for success!

      2015+ WRX Intake



      Intercooler Thickness

      • 3.0"
      • 3.5"
      • 4.0"
      • 5.0"

      Intercooler Anodizing

      • No Thanks - Silver Core
      • Anodized Black
      • Anodized Gold
      • Anodized Blue
      • Anodized Red
      • Anodized Purple

      Stencil/Logo

      • No Thanks
      • Yes
      View product
