AFR Autoworks  |  SKU: TR-TS1047

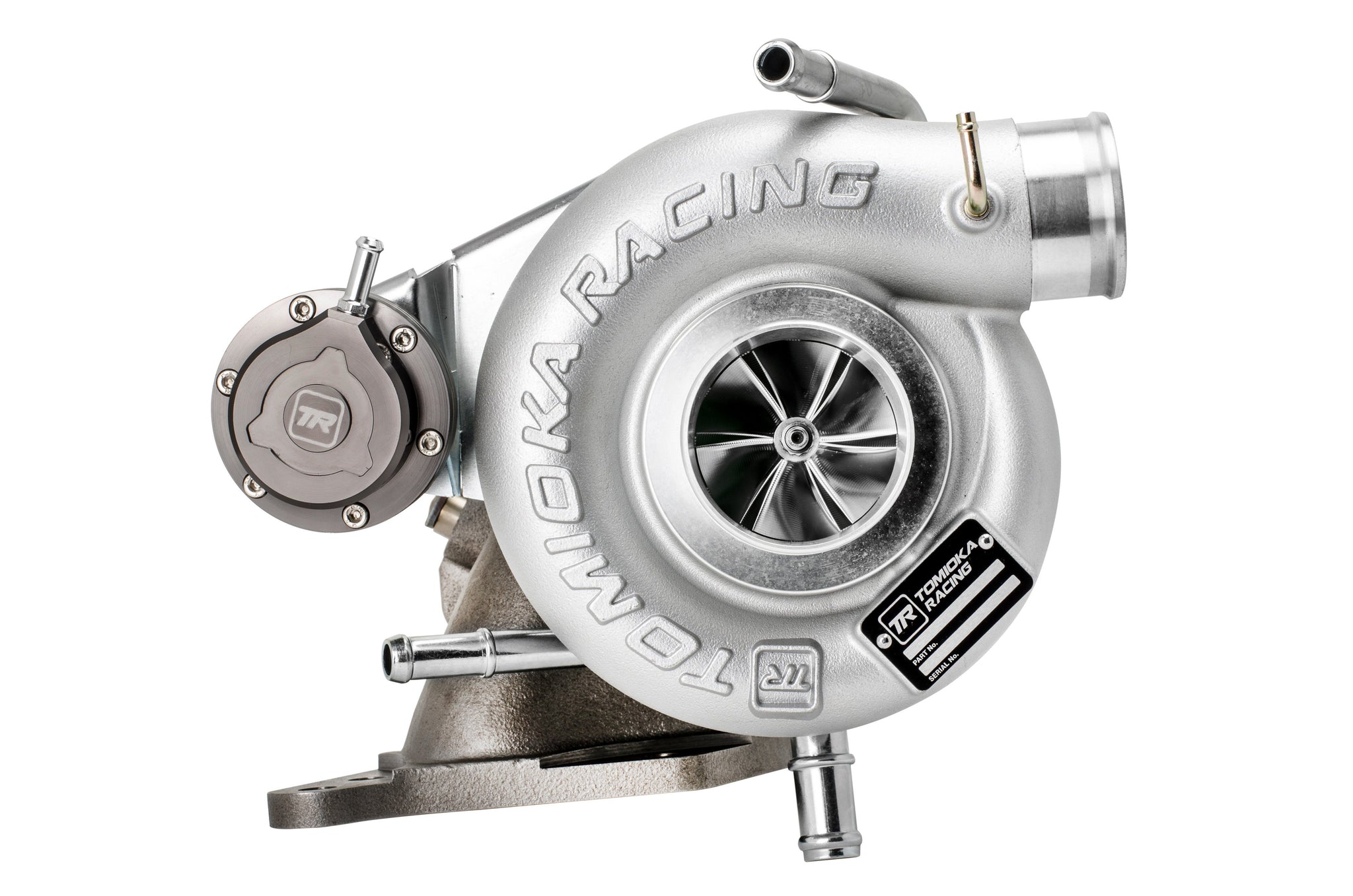

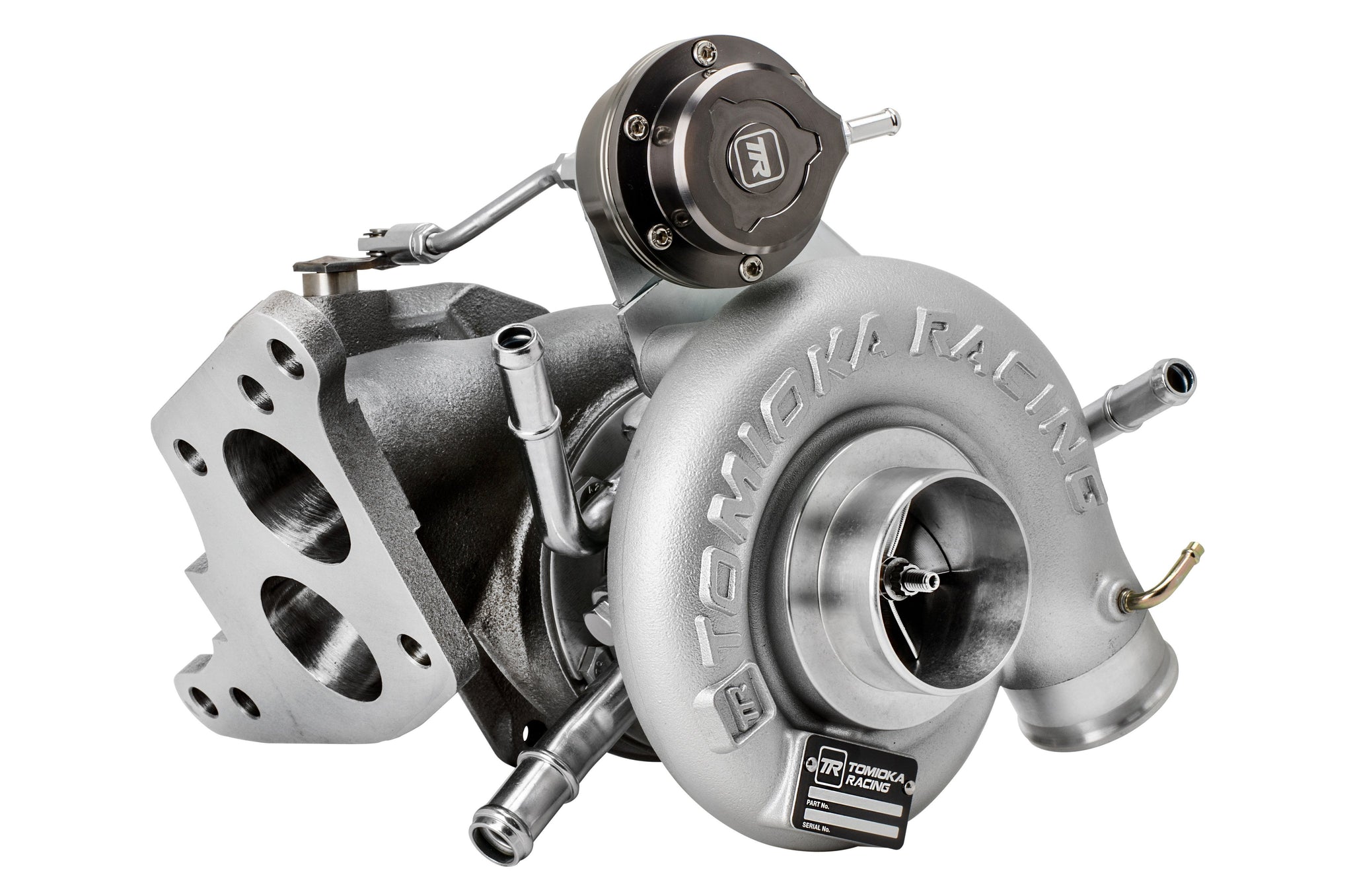

Tomioka Racing - TR GTX2971 Twin Scroll for Subaru WRX 02-07 and STi 04-18

$1,695.00 $2,230.54
Wastegate


Introducing the twin scroll GTX2971R for Subaru 02-07 WRX and 04-18 STi! Just like the GTX2971R,this twin scroll edition features a ball-bearing cartridge, billet compressor wheel , and 10cm2 housing. Thanks to the billet compressor wheel the overall weight of the wheel is lighter than competing turbochargers and allows for maximum airflow throughout the unit with the help of point milling on each blade. A unique wheel and blade design, featuring a 20% larger wheel with 17% longer blades than the factory turbocharger. In addition, the GTX2971 features a port and polished exhaust housing to minimize exhaust flow turbulence. All hardware is included with purchase.

NOTE: This turbocharger requires the usage of twin scroll headers and downpipe.

Bearing Type:

Ball-Bearing

Flange Type:

Standard Subaru 5-Bolts
Compressor Wheel: In: 54 mm
Ex: 72 mm

Turbine Wheel:

 In: 60 mm
Ex: 57 mm

Turbine Housing:

10cm2

Actuator:

1.3 bar / 19 psi

Horsepower:

500 HP
Applications:
2002 - 2007 Subaru WRX
2004 - 2018 Subaru STi
    Kit Contents:
    Turbocharger
    Gaskets
    Hardware Kit
    Actuator
    Oil Pipe
    Water Pipe
    Tomioka Racing - TR GTX2971 Twin Scroll for Subaru WRX 02-07 and STi 04-18
    AFR Autoworks

    Tomioka Racing - TR GTX2971 Twin Scroll for Subaru WRX 02-07 and STi 04-18

    $1,695.00 $2,230.54


    Introducing the twin scroll GTX2971R for Subaru 02-07 WRX and 04-18 STi! Just like the GTX2971R,this twin scroll edition features a ball-bearing cartridge, billet compressor wheel , and 10cm2 housing. Thanks to the billet compressor wheel the overall weight of the wheel is lighter than competing turbochargers and allows for maximum airflow throughout the unit with the help of point milling on each blade. A unique wheel and blade design, featuring a 20% larger wheel with 17% longer blades than the factory turbocharger. In addition, the GTX2971 features a port and polished exhaust housing to minimize exhaust flow turbulence. All hardware is included with purchase.

    NOTE: This turbocharger requires the usage of twin scroll headers and downpipe.

    Bearing Type:

    Ball-Bearing

    Flange Type:

    Standard Subaru 5-Bolts
    Compressor Wheel: In: 54 mm
    Ex: 72 mm

    Turbine Wheel:

    		 In: 60 mm
    Ex: 57 mm

    Turbine Housing:

    10cm2

    Actuator:

    1.3 bar / 19 psi

    Horsepower:

    500 HP
    Applications:
    2002 - 2007 Subaru WRX
    2004 - 2018 Subaru STi
      Kit Contents:
      Turbocharger
      Gaskets
      Hardware Kit
      Actuator
      Oil Pipe
      Water Pipe

      Wastegate

      • 1.1 BAR
      • 1.3 BAR
